Clad Metal KN-1
Clad Metal KN-1
Merit
1) Excellent conductivity
2) The difference in electrode potential is small, which can satisfy the salt spray test for more than48 hours.
3) Excellent welding performance, It is the same as the welding effect of pure nickel strip.
Dimension
| Thickness (mm) | Width (mm) |
| 0.06-3.0 | 1.5-300.0 |
Applications
It is mainly used in the anode leads (connecting pieces) and related PACK materials of high-powercylindrical batteries 18650, C26650, and 32650.

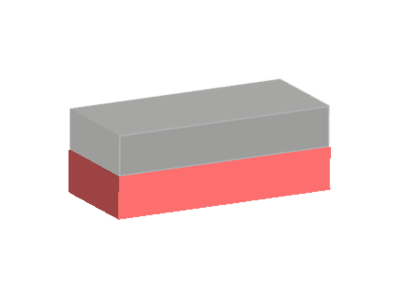

| Cu | 80 |
| Ni | 20 |
Request a Quote
| Temper | Tensile Strength(Mpa) | Elongation(%) | Hardnes(HV0.2) |
| TM01 | 270 | min. 13 | min.90 |
Physical properties of the above materials are conventional performance indicators.If you have some special requirements,(for example property and tolerance).please contact Kinmachi Company directly，we will give you professional assessments and answers.
| Density (g/cm³) | 8.93 |
| Electrical conductivility IACS%(20℃)* | 76 |
| Modulus of elasticity (KN/mm²) | 140 |
| Resistivity uΩ.cm | 1.9±0.2 |
| Thermal conductivity W/(m*K) | 310 |
*value for the lowest temper class
